Tired of hard water stains and scale buildup? The installation of a water softener can fix that and protect your home’s plumbing at the same time.
Installing one might sound like a big job, but it can be manageable with a bit of planning. Whether you’re a first-time DIYer or just replacing an older system, knowing where to start is the first step in the process.
If your dishes come out of the dishwasher cloudy or your faucets have that stubborn white crust, you’re dealing with hard water. That means your water contains extra minerals, like calcium and magnesium, which leave behind residue as it dries.
Over time, that buildup can make your skin feel dry and your appliances work harder than they should. A water softener swaps those minerals for a small amount of sodium or potassium through a process called ion exchange.
The result? Softer, cleaner water that feels better and is more gentle on your home’s plumbing.
| Type | How It Works | Best For | Cost |
| Salt-Based Ion Exchange | Uses a resin tank to swap hardness minerals for small amounts of sodium or potassium. | Homes with hard water that causes scale, dry skin, or appliance buildup. | $500–$1,700 |
| Salt-Free Conditioner | Doesn’t remove minerals; conditions them so they don’t stick to surfaces. Many use a process called template-assisted crystallization to reduce scale formation. | Homeowners who want less scale buildup but don’t need fully softened water; low-maintenance option. | $800–$4,000 |
| Dual-Tank (Twin) Softener | Has two resin tanks, so one can soften while the other regenerates, providing continuous soft water 24/7. | Larger households or areas with very hard water and high daily water use. | $1,000–$5,000 |
| Magnetic or Electronic Descaler | Uses an electric field around pipes to alter the behavior of minerals, reducing buildup without removing them. Scientific evidence on their effectiveness is mixed. | Renters or small households looking for an easy, no-plumbing option, less effective for very hard water. | $200–$600 |
For many homeowners, installing or replacing a water softener can be a weekend DIY project. But the answer here really depends on your comfort level with following directions and handling simple plumbing work.
You can probably handle the install yourself if:
You’ll want to call a pro if:
Note: Local codes can be picky about how the drain and bypass valve are connected. Even if you’re confident you can handle most of it yourself, it might be worth getting a quick quote or inspection from a pro.
Before you start, lay out all your tools and fittings so you don’t have to run back and forth to the store. Most are simple household items, and you can find everything at a local hardware store.
If you’re planning to install the softener yourself, having the right fittings makes everything smoother and leak-free.
Your water softener needs a place to send the water it flushes out during cleaning. For that, you’ll use half-inch to three-quarter-inch drain tubing. Connect the tubing to a standpipe, floor drain, or sump pump.
It’s a good idea to test your water before you start and again after the system’s been running for a day or two. Use hardness test strips.
Dip one into a glass of tap water, wait a few seconds, and match the color to the chart on the package. This gives you a reading in grains per gallon (GPG).
If your water tests around seven to 10 GPG or higher, it’s considered hard. After installation, you should see a major reduction, often down to one to three GPG.
Good planning makes the installation of a water softener much easier. Before you start, gather your tools, locate your main water line, and make sure there’s access to power and a nearby drain.
The best water softener for your home depends on how many people live there and how hard your water is.
A household of two to three people with water testing seven to 10 grains per gallon will usually need about a 30,000-grain system. Larger families may need 40,000 or more.

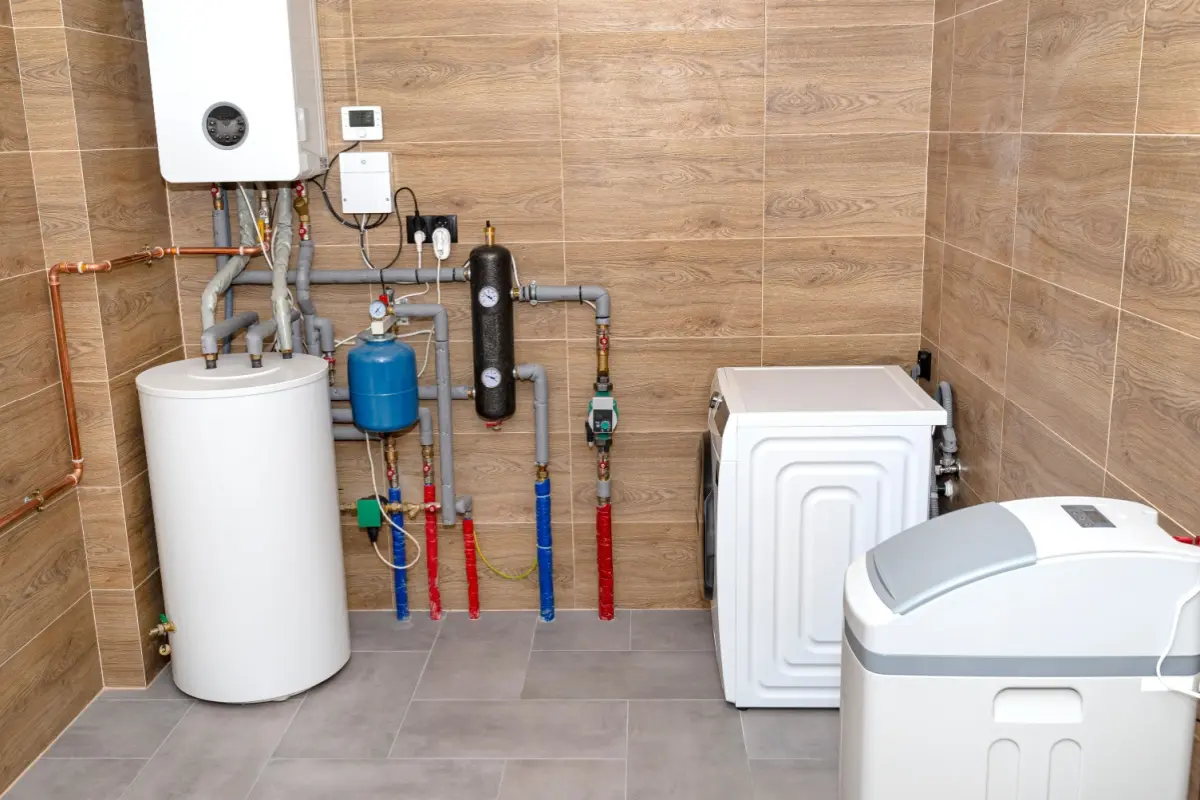

Install the softener near your main cold-water line, just before the water heater, so all indoor water is softened. Keep outdoor taps connected before the softener to avoid wasting softened water outside.
Set the brine tank on a level, dry surface within about 10 feet of a drain and near a GFCI outlet if needed. Make sure there’s room to open the lid and add salt.
Before cutting any pipes, take a few minutes to plan. Find your main water line and choose a spot just before the water heater so every tap in your home gets softened water.
Turn off the main water supply, open a faucet to relieve pressure, and lay down towels to catch drips. If you’re replacing a water softener, switch it to bypass mode, drain it, and disconnect the hoses. Cap the open lines to avoid leaks.
Cut into your main water line where you marked earlier, then add shutoff valves and unions on both sides.
Connect the “In” port to your main supply and the “Out” port to the rest of the house. Check that the arrows on the valve point in the right direction.
When everything’s connected, open the main valve slowly to fill the system. Turn on a nearby faucet to release air, then check for leaks.
Your softener needs a way to flush out minerals during cleaning. Connect the drain hose to a nearby pipe or floor drain, leaving a few inches of open space so wastewater can’t backflow into your system.
Before filling the tank, rinse it out if it’s been used before. Add a few inches of water to the bottom, then pour in your softener salt. Most homeowners use pellets, but potassium chloride is an option if you prefer a low-sodium option.
Set your time of day, water hardness, and regeneration schedule. Many are pre-set to regenerate overnight (often around 2 a.m.), but you can adjust this. Run a manual regeneration cycle to fill the tank and flush out any trapped air.
After regeneration, run cold water from a tub or laundry tap for a few minutes. Then test your water with a hardness strip. It should now read anywhere from zero to three GPG. If it’s higher, adjust your hardness or salt settings slightly.
Hard water is one of those problems you don’t notice until you fix it, then you realize how much better everything feels.
Whether you handle the installation of a water softener yourself or hire a professional, it’s an upgrade that pays off in comfort. And once it’s running, it doesn’t need much attention beyond a quick salt refill now and then.
If you’re considering a new water softener but prefer a flexible payment option, you can explore water treatment financing. Renovate can help connect homeowners with financing for projects like these. Terms vary by lender.
You’ve got the steps, now let’s clear up the gray areas. Here’s what homeowners commonly ask us about whole-house water softener installation.
Use a basic hardness test kit or strips, available for $5 to $10. Fill a glass with tap water, dip the strip for a few seconds, and match the color to the chart.
Yes, softened water is generally safe. The softening process adds a small amount of sodium when it replaces magnesium and calcium, though.
If you’re on a low-sodium diet, consider keeping one faucet unsoftened or using systems with potassium chloride instead.
It depends on your local jurisdiction. Many areas treat the installation of a water softener as a minor plumbing fix, but some will require a permit or backflow prevention device. Check with your local building or plumbing department to be sure.
Salt should be checked monthly and topped up whenever the brine tank is less than half full. Annual maintenance includes inspecting salt bridges (hard packing) and cleaning the tank if needed. Regular upkeep prevents performance drop-off.
Most traditional salt-based water softeners last about 15 years with proper maintenance. With high-quality components and low-stress conditions, some may even reach 20 years. Wear and tear depend on water hardness and usage volume.
A whole-home water softener system installation costs $1,500 on average, but more complex setups may reach around $6,000.
